Spike
Roberto Mantovani
Une sélection d’appareils de la plus haute qualité optique et constructive, capables de répondre aux besoins de conception des espaces extérieurs dans les domaines résidentiels et hôteliers.
COLORIS MÉTAL
IP65
CRI90+

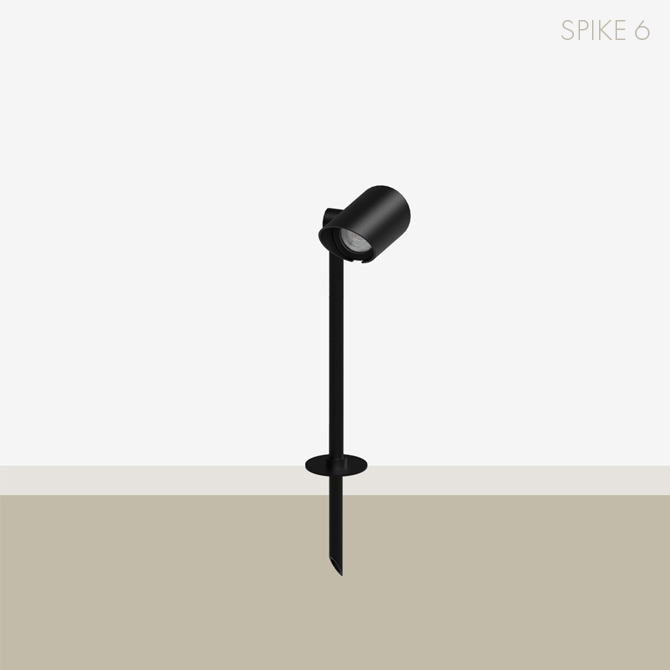

SPIKE 6

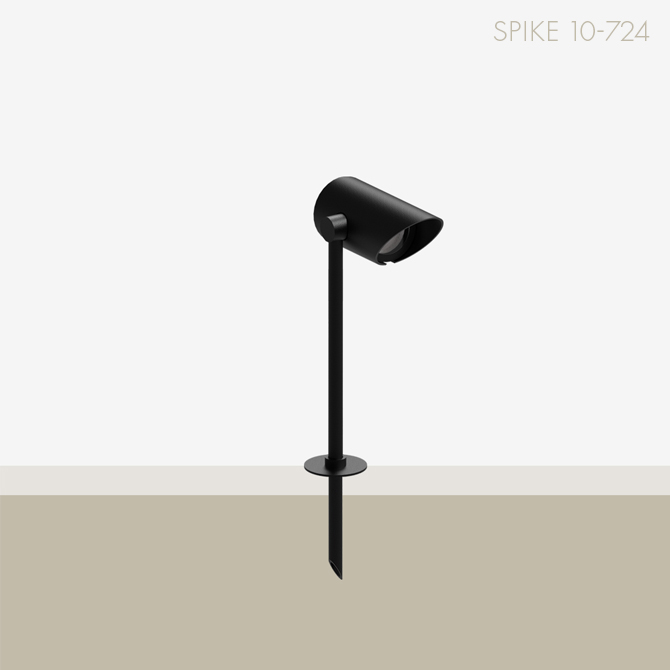

SPIKE 10-724
TÉLÉCHARGER
| CCT | SPIKE 6 | SPIKE 10 | SPIKE 724 | |
|---|---|---|---|---|
| 2700K | 6W 540lm | 10W 840lm | 7W 590lm | |
| 3000K | 6W 600lm | 10W 930lm | 7W 650lm |
| CCT | 2700K |
| SPIKE 6 | 6W 540lm |
| SPIKE 10 | 10W 840lm |
| SPIKE 724 | 7W 590lm |
| CCT | 3000K |
| SPIKE 6 | 6W 600lm |
| SPIKE 10 | 10W 930lm |
| SPIKE 724 | 7W 650lm |
| SOURCE | ALIMENTATION | LED DRIVER | ||
|---|---|---|---|---|
| LED | SPIKE 6 500mA | Non inclus | ||
| SPIKE 10 500mA | Non inclus | |||
| SPIKE 724 24VDC | Non inclus |
| SOURCE | LED |
| ALIMENTATION |
SPIKE 6 500mA SPIKE 10 500mA SPIKE 724 24VDC |
| LED DRIVER | Non inclus |
CODE
Créez votre code en choisissant chaque attribut
BOSPE
| CONDUCTEURS | |||
|---|---|---|---|
| 500mA | Luminaires Min-Max | Perçage fraisé mm | |
| CEDLTC00135 | On/off IP20 Max 14W |
1-2 SPIKE 6 1 SPIKE 10 |
Ø30 |
| CEDALV00006 | On/off IP67 Max 20W |
1-3 SPIKE 6 1-2 SPIKE 10 |
Ø44 |
| CEDLTC00140 | Dimmable IP20 PUSH, DALI 2, 0/1-10V Max 27W |
1-4 SPIKE 6 1-2 SPIKE 10 |
Ø72 |
| CEDACT00002 | Dimmable IP20 PUSH, DALI 2 Max 12W |
1-2 SPIKE 6 1 SPIKE 10 |
Ø36 |
| CEDLTC00142 | Dimmable IP20 PUSH, IGBT-TRIAC Max 24W |
1-4 SPIKE 6 1-2 SPIKE 10 |
Ø56 |
| CEDALV00003 | Dimmable IP67, DALI 2 Max 10W |
1-2 SPIKE 6 1 SPIKE 10 |
Ø44 |
| 24VDC | Luminaires Min-Max | Perçage fraisé mm | |
| CEDLTC00136 | On/off IP20 Max 20W | 1-2 SPIKE 724 | Ø60 |
| CEDLTC00137 | On/off IP20 Max 70W | 1-10 SPIKE 724 | Ø70 |
| CEDALV00007 | On/off IP67 Max 36W | 1-5 SPIKE 724 | Ø44 |
| CEDALV00001 | Dimmable IP20 PUSH, DALI2, 0/1-10V Max 24W | 1-3 SPIKE 724 | Ø45 |
| CEDALV00004 | Dimmable IP67, DALI2 Max 24W | 1-3 SPIKE 724 | Ø48 |
| DRIVERS | |
|---|---|
| 500mA | |
| CEDLTC00135 | |
| On/off IP20 Max 14W | |
| Luminaires Min-Max | |
| 1-2 SPIKE 6 1 SPIKE 10 |
|
| Perçage fraisé mm | |
| Ø30 | |
| 500mA | |
| CEDALV00006 | |
| On/off IP67 Max 20W | |
| Luminaires Min-Max | |
| 1-3 SPIKE 6 1-2 SPIKE 10 |
|
| Perçage fraisé mm | |
| Ø44 | |
| 500mA | |
| CEDLTC00140 | |
| Dimmable IP20 PUSH, DALI 2, 0/1-10V Max 27W | |
| Luminaires Min-Max | |
| 1-4 SPIKE 6 1-2 SPIKE 10 |
|
| Perçage fraisé mm | |
| Ø72 | |
| 500mA | |
| CEDACT00002 | |
| Dimmable IP20 PUSH, DALI 2 Max 12W | |
| Luminaires Min-Max | |
| 1-2 SPIKE 6 1 SPIKE 10 |
|
| Perçage fraisé mm | |
| Ø36 | |
| 500mA | |
| CEDLTC00142 | |
| Dimmable IP20 PUSH, IGBT-TRIAC Max 24W | |
| Luminaires Min-Max | |
| 1-4 SPIKE 6 1-2 SPIKE 10 |
|
| Perçage fraisé mm | |
| Ø56 | |
| 500mA | |
| CEDALV00003 | |
| Dimmable IP67, DALI 2 Max 10W | |
| Luminaires Min-Max | |
| 1-2 SPIKE 6 1 SPIKE 10 |
|
| Perçage fraisé mm | |
| Ø44 | |
| 24VDC | |
| CEDLTC00136 | |
| On/off IP20 Max 20W | |
| Luminaires Min-Max | |
| 1-2 SPIKE 724 | |
| Perçage fraisé mm | |
| Ø60 | |
| 24VDC | |
| CEDLTC00137 | |
| On/off IP20 Max 70W | |
| Luminaires Min-Max | |
| 1-10 SPIKE 724 | |
| Perçage fraisé mm | |
| Ø70 | |
| 24VDC | |
| CEDALV00007 | |
| On/off IP67 Max 36W | |
| Luminaires Min-Max | |
| 1-5 SPIKE 724 | |
| Perçage fraisé mm | |
| Ø44 | |
| 24VDC | |
| CEDALV00001 | |
| Dimmable IP20 PUSH, DALI2, 0/1-10V Max 24W | |
| Luminaires Min-Max | |
| 1-3 SPIKE 724 | |
| Perçage fraisé mm | |
| Ø45 | |
| 24VDC | |
| CEDALV00004 | |
| Dimmable IP67, DALI2 Max 24W | |
| Luminaires Min-Max | |
| 1-3 SPIKE 724 | |
| Perçage fraisé mm | |
| Ø48 | |
